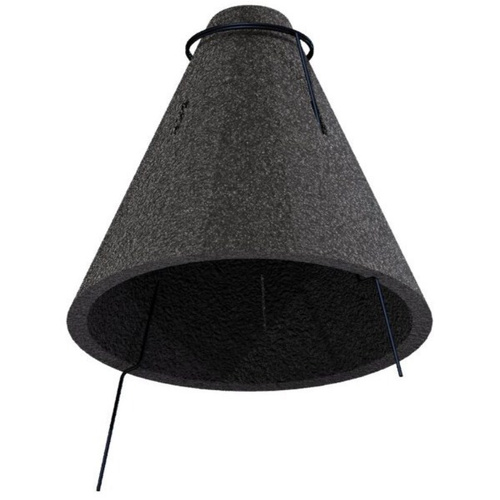

Trafalgar Fire Rated Downlight Cover Size 250x290mm

Fire Rated Downlight Covers

$43.00
In Stock


Calculate Shipping

Fire Rated Downlight Covers for spot lights - Trafalgar Downlight Covers are an intumescent cover used to fire rate the penetrations created by the installation of downlights into fire rated plasterboard ceilings.

Fire Rated Downlight Covers for spot lights- Trafalgar Downlight Covers are an intumescent cover used to fire rate the penetrations created by the installation of downlights into fire rated plasterboard ceilings.

In a fire situation the intumescent material reacts sealing off the penetration and downlight, stopping the passage of flame and hot gases into the ceiling cavity. The Trafalgar Downlight Cover also prevents dust and other debris from contacting the rear of the hot downlight, reducing the chances of accidental ignition.

Trafalgar Downlight Covers have been fully fire tested in accordance with AS1530.4 and can achieve a 2 hour fire rating with incipient spread of fire, the latter of which is required for all fire rated ceiling penetrations by the Building Code of Australia.

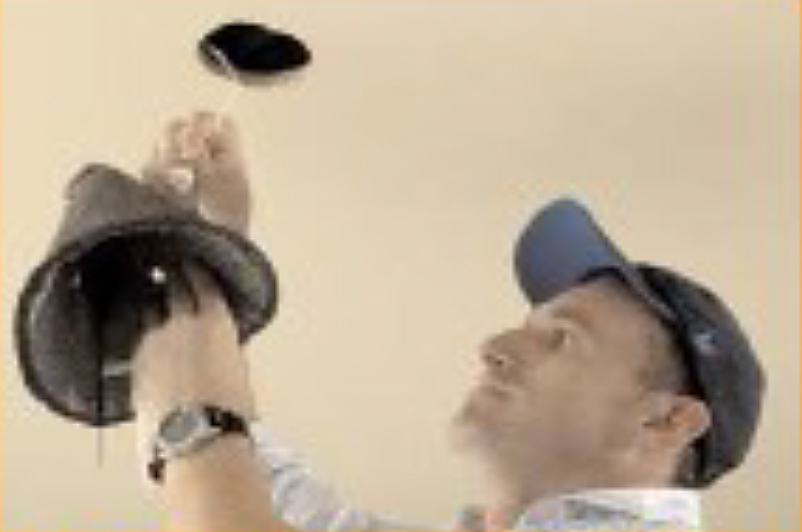

Trafalgar Downlight Covers are easy to install, in either new or retrofit applications. As modern architects and builders continue to specify downlights in their designs, Trafalgar’s Downlight Covers will become an integrated part of the Australian building industry.

THIS IS FOR SIZE 250mm Diameter x 290mm Height

(traf-downlight_2)

Key Features

  • Known and trusted brand - Benchmark Quality
  • Maintains the fire protection performance of the ceiling – preventing or delaying the spread of fire
  • Suitable for fire rated plasterboard ceilings
  • Easily retrofit
  • 2 hour fire ratings with incipient protection (contact the Trafalgar Engineering Team for suitable systems)
  • Available in two sizes

  • For further information on this product, contact Trafalgar

PYRO-SAFE Cable Wraps are used to protect cables from fire spread in industrial, marine and offshore applications where the most stringent independent approvals are required. They can be installed in four general configurations.

 Wrapping of the cable trays and enclosed cables
 Wrapping of the cables on the tray
 Wrapping of individual cables and cable bundles
 Three-sided wrapping for cables or cable bundles on walls or slabs

For further information on these products, contact Trafalgar



SKU traf-downlight_2
Model # Trafalgar Downlight
Brand Trafalgar
Shipping Weight 0.5500kg
Shipping Width 0.250m
Shipping Height 0.250m
Shipping Length 0.290m
Shipping Cubic 0.018125000m3
Type Trafalgar Fire Rated Downlight Cover Size 250x290mm
