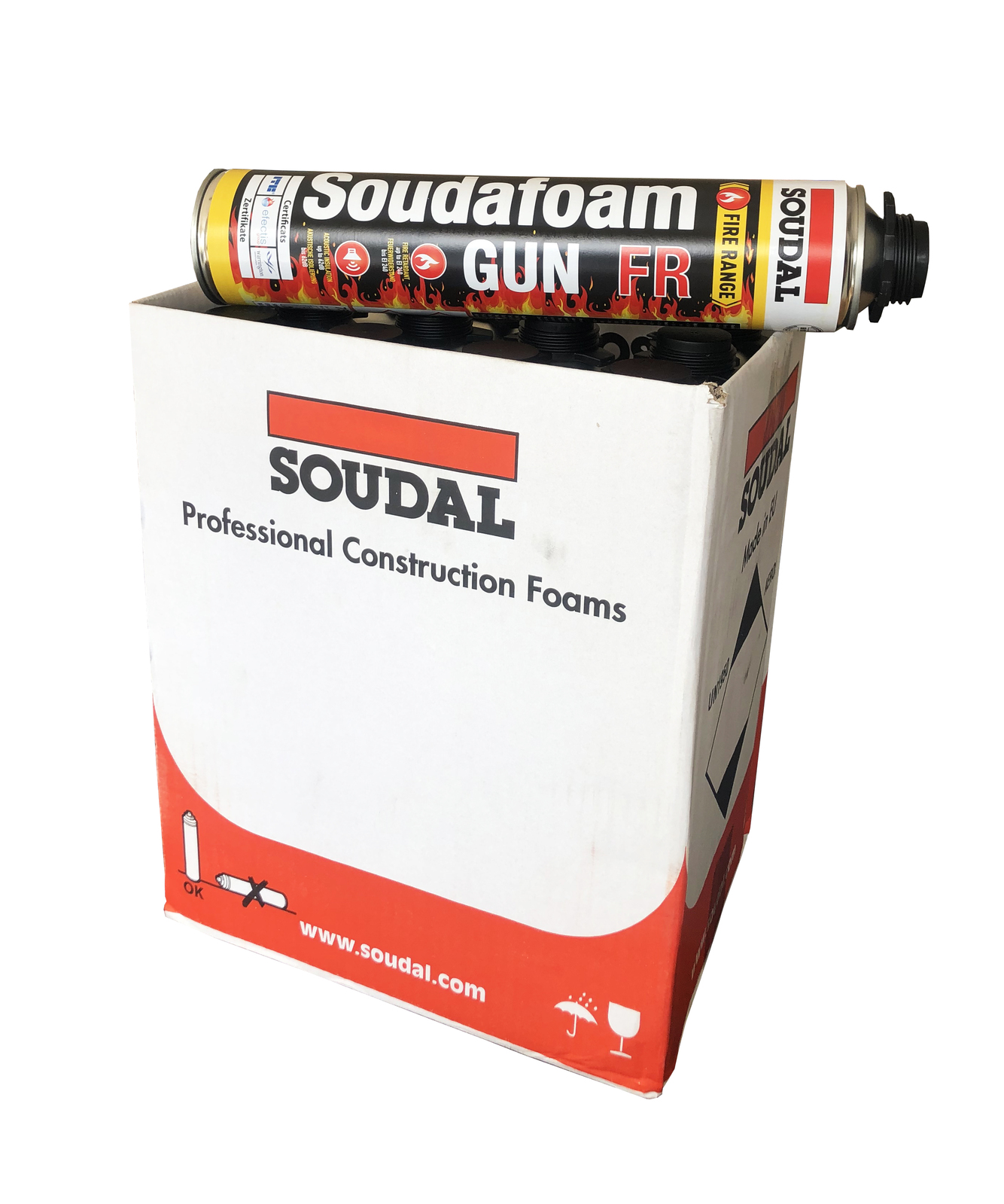

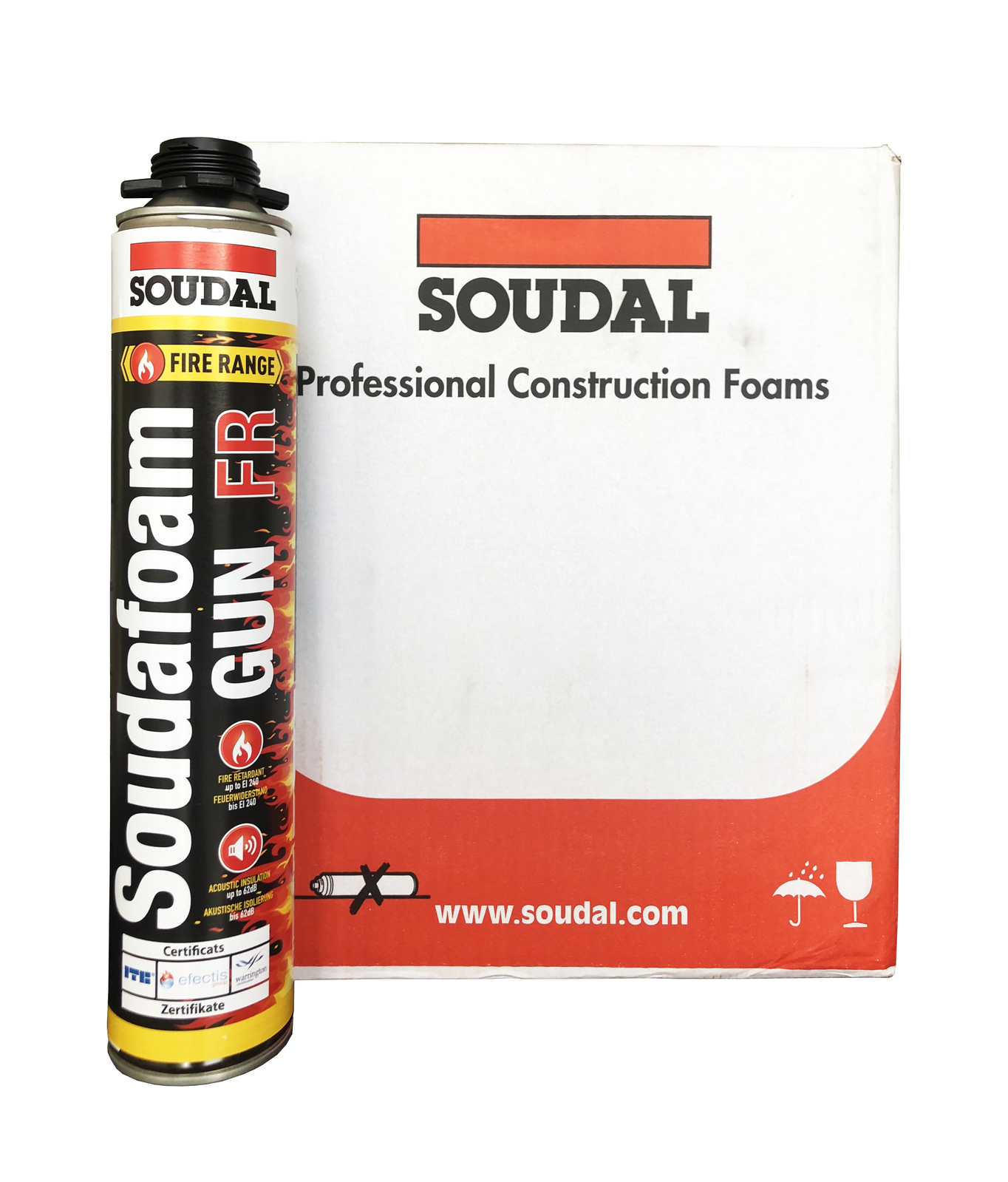

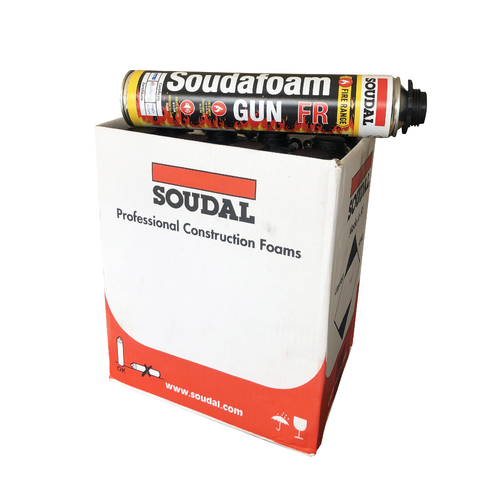

Soudal Soudafoam Gun FR SOUDAL BOX of 12 Red 750ml Aerosol Cartridges

Soudal Soudafoam Gun FR-SOUDAL Box of 12 Fire Rated Foam Cartridges

Calculate Shipping

Soudal Soudafoam FR Gun is a self expanding, ready to use polyurethane foam

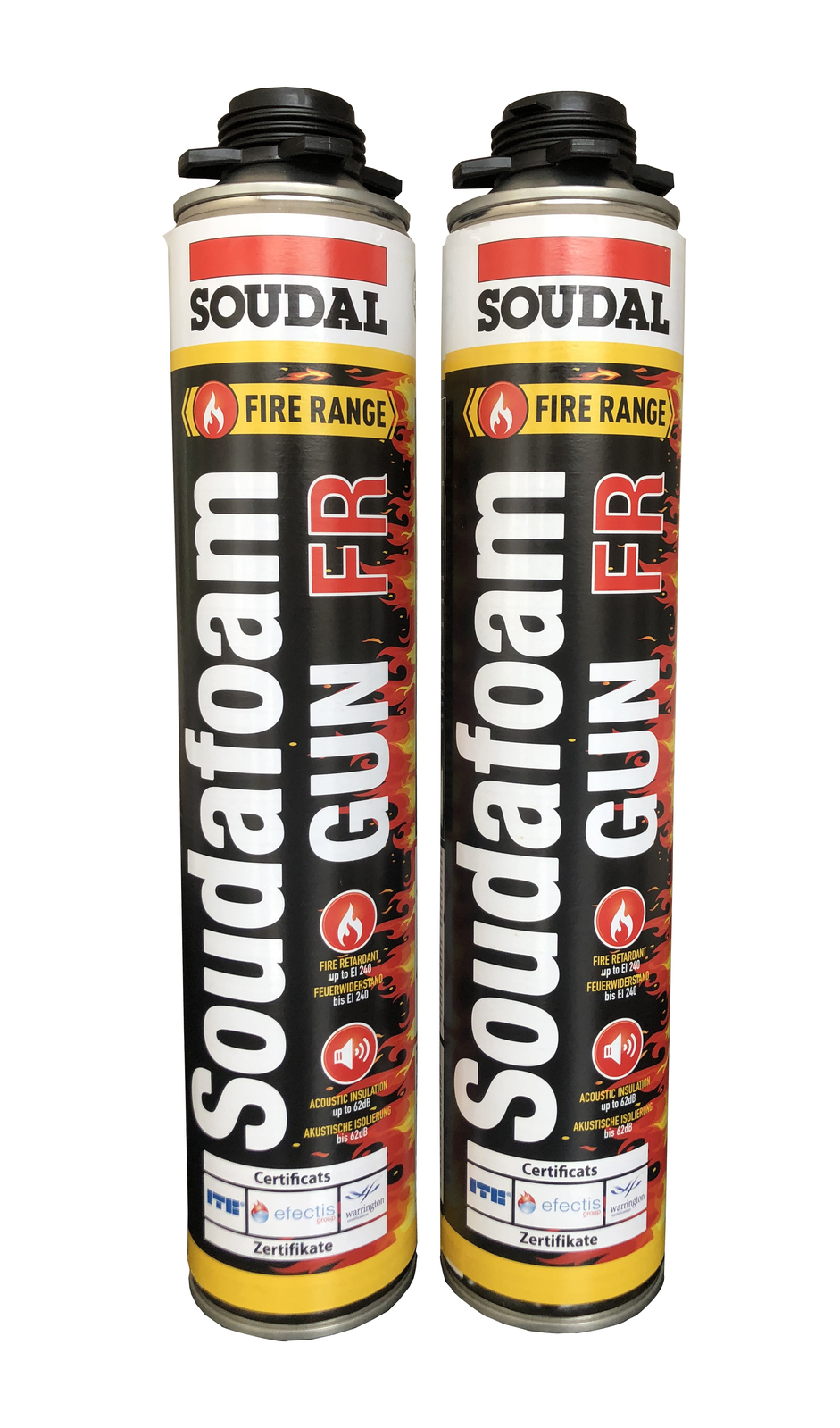

Soudal Soudafoam FR Gun RED 750ml Aerosol

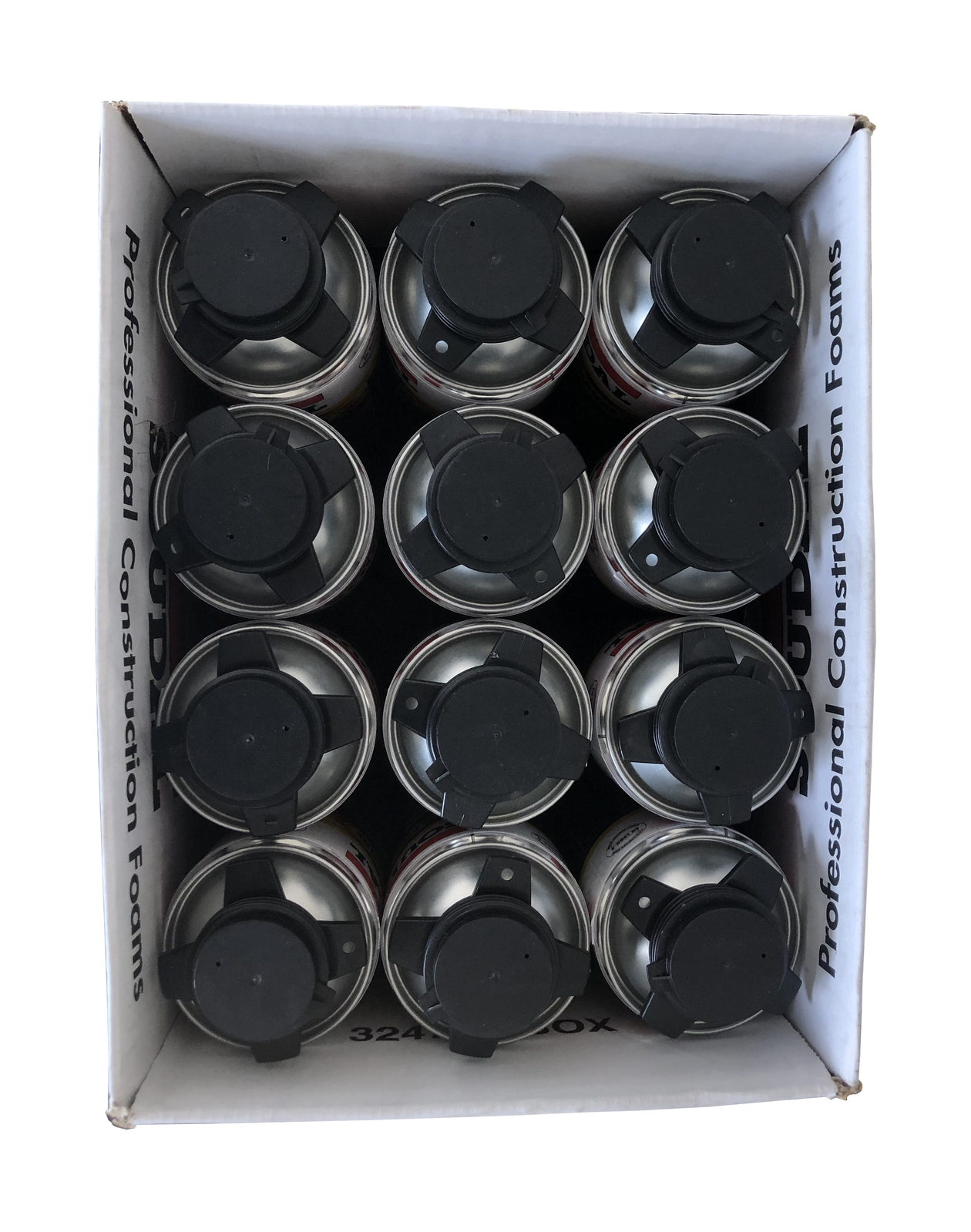

Box of 12 x 750ml Aerosol Cartriges

Soudal Soudafoam FR Gun type is a one-component, selfexpanding, ready to use polyurethane foam, which contains HCFC- and CFC-free propellants who are not harmful for the ozonlayer and where the canister is provided with a thread so it can be used on a gun. Soudafoam FR Gun is a PU-foam with fire retardant characteristics according to the European standard EN 1366-4. Because of the Duravalve, the optimal yield remains over the entire shelf life, even when stored or transported lying down.

FEATURES & BENEFITS

Fire resistant in a joint (EN 1366-4)
High filling capacity
High insulation value, thermal and acoustic
Very good bonding properties
CE marked (ETAG 026)
Good adhesion on all surfaces (except PE, PP and PTFE)

APPLICATIONS

Installation of fireproof doors and windows.
Sealing of fire retardant joints in walls and ceiling.
As part of the ‘Soudal Fire Range’ assortment for seals and joints.
Sealing of all openings in roof constructions.
Apply of an acoustic baffle
All foam applications in static joints.

(3661)

FEATURES & BENEFITS

Fire resistant in a joint (EN 1366-4)
High filling capacity
High insulation value, thermal and acoustic
Very good bonding properties
CE marked (ETAG 026)
Good adhesion on all surfaces (except PE, PP and PTFE)

Soudal Soudafoam FR GUN Technical Specifications

Technical data Basis Polyurethane
Consistancy Stable foam, thixotropic
Curing system Moisture curing
Skin Formation (FEICA TM 1014) 9,5 min
Cutting Time (FEICA TM 1005) 55 min
Density Ca. 25 kg/m³
Sound insulation (EN ISO 717-1) 62 dB
Box Yield (FEICA TM 1003) 750 ml yields ca. 43 l of foam
Joint Yield (FEICA TM 1002) 750 ml yields ca. 24 m of foam
Shrinkage after curing (FEICA TM 1004) < 8 %
Expansion after curing (FEICA TM 1004) None
Expansion during curing (FEICA TM 1010) Ca. 40 %
Compressive strength (FEICA TM 1011) Ca. 52 kPa
Shear strength (FEICA TM 1012) Ca. 47 kPa
Temperature resistance -40 °C till +90 °C (cured)

SKU	3661
Brand	Soudal
Shipping Weight	15.0000kg
Shipping Width	0.270m
Shipping Height	0.320m
Shipping Length	0.200m
Shipping Cubic	0.017280000m3
Unit Of Measure	m
Assembled Length	0.200m
Assembled Height	0.320m
Assembled Width	0.270m
