Fire Rated Cable Tray - 600mm x 78mm x3mL- 40kg/m

Fire Rated Cable Tray AS3013:2005

$160.00
Sold Out


Calculate Shipping

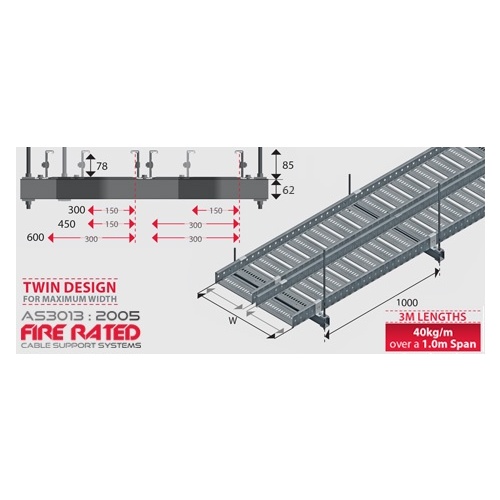

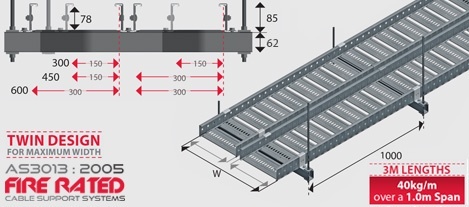

EzyStrut's Fire Rated ET5 Tray provides a great value solution for cable supports allowing for 78mm depth and designed for in or outside installation with a clean looking finish.

Cable Laying Depth 78mm
Cable Laying Widths 600mm
Standard Length 3m
  • Cable tray designed to offer continuous support of cables
  • Twin design to maximise cable laying width
  • Rated load of 40kg per metre over a 1.0m Span
  • 1000mm Trapeze Support Spacing
  • Complies with AS3013:2005 Fire Rating; certified to Appendix C Classification WS5X (2 Hours) with a peak temperature of 1050°C
  • Available in Pre-Galvanised or Hot Dip Galvanised Steel, with Painting/Powder Coating options also available
  • Uses M12 threaded rod for installation

EzyStrut's Fire Rated ET5 Tray provides a great value solution for cable supports allowing for 78mm depth and designed for in or outside installation with a clean looking finish.

(350)

Cable Laying Depth 78mm
Cable Laying Widths 600mm
Standard Length 3m
SKU 350
Model # EzyStrut
Brand EzyStruct
Shipping Weight 50.0000kg
Shipping Width 1.000m
Shipping Height 1.000m
Shipping Length 1.000m
Shipping Cubic 1.000000000m3
Assembled Length 3.000m
Assembled Height 3.000m
Assembled Width 0.100m
Type Fire Rated Cable Tray
