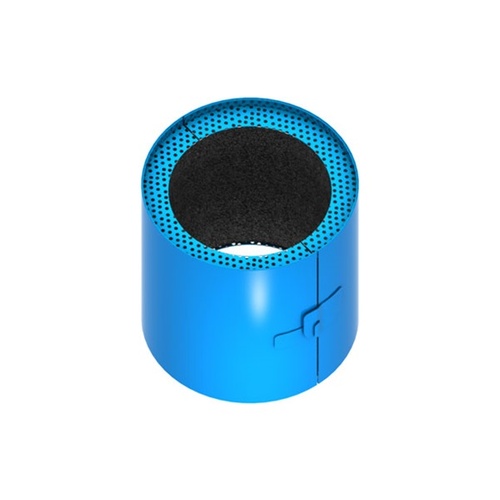

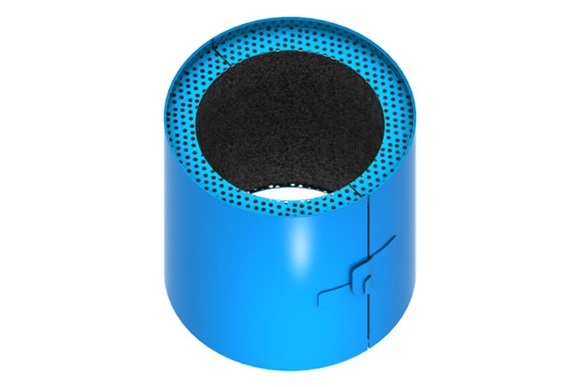

Promat PromaSeal FCW 100 Fire Wall Collar
PromaSeal FCW 100 Fire Collar
Notify me when back in stock
PROMASEAL® Wall Collar is designed for insertion into wall elements made of matrix engineered mineral, Cement Bound Matrix, PromaX® mineral, calcium silicate, fibre silicate, plasterboard, concrete or masonry, and has been tested on uPVC and HDPE pipes.
Similar to the PROMASEAL® Retrofit Collar, this is a split type collar enabling retro fitting where necessary.
(78269)

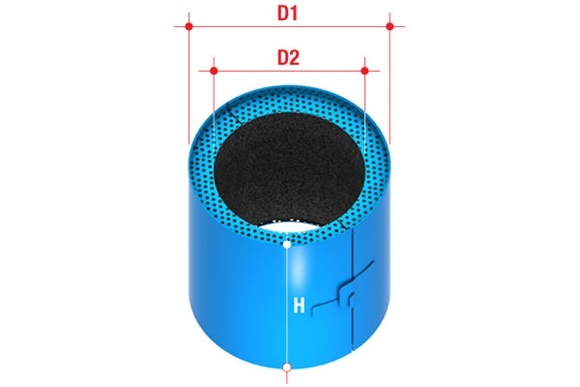

DIMENSION
Code no. | FCW 40 | FCW 50 | FCW 65 | FCW 100 | FCW 150 | ||
---|---|---|---|---|---|---|---|
Pipe nominal diameter | mm | 40 | 50 | 65 | 100 | 150 | |
Body | H | mm | 120 | 120 | 120 | 120 | 120 |
D1 | mm | 80* | 90* | 107* | 153* | 203* | |
D2 | mm | 47 | 60 | 75 | 116 | 164 |
* Additional allowance of 3mm for clip
PROMASEAL® Wall Collar are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.
SKU | 78269 |
Model # | Promat PromaSeal FCW 100 |
Brand | Promat |
Shipping Weight | 0.7000kg |
Shipping Width | 0.200m |
Shipping Height | 0.050m |
Shipping Length | 0.200m |
Shipping Cubic | 0.002000000m3 |
Type | PromaSeal FCW 100 Fire Wall Collar |
