Promat PromaSeal FCW 65 Fire Wall Collar

PromaSeal FCW 65 Fire Collar

$31.00
In Stock


Calculate Shipping

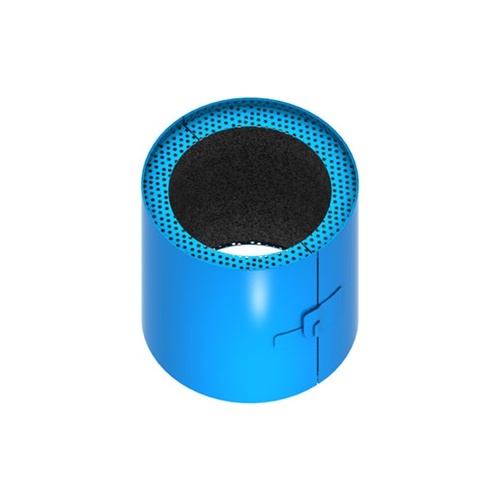

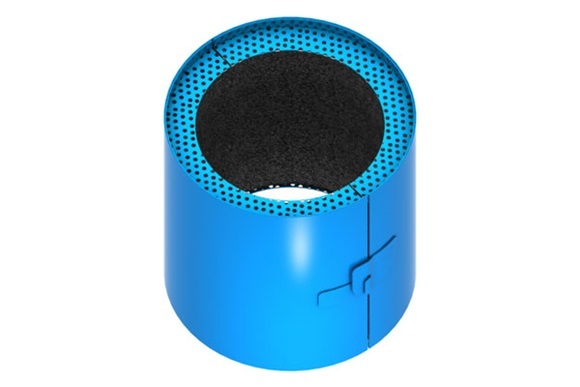

PROMASEAL® Wall Collar is designed for insertion into wall elements made of matrix engineered mineral, Cement Bound Matrix, PromaX® mineral, calcium silicate, fibre silicate, plasterboard, concrete or masonry, and has been tested on uPVC and HDPE pipes.

PROMASEAL FCW Wall Collar - Fire Resistant Collar for Plastic Pipes Penetration Seals

PROMASEAL® Wall Collar is designed for insertion into wall elements made of matrix engineered mineral, Cement Bound Matrix, PromaX® mineral, calcium silicate, fibre silicate, plasterboard, concrete or masonry, and has been tested on uPVC and HDPE pipes.

Similar to the PROMASEAL® Retrofit Collar, this is a split type collar enabling retro fitting where necessary.


THIS ONE IS 65mm in size

(78273)

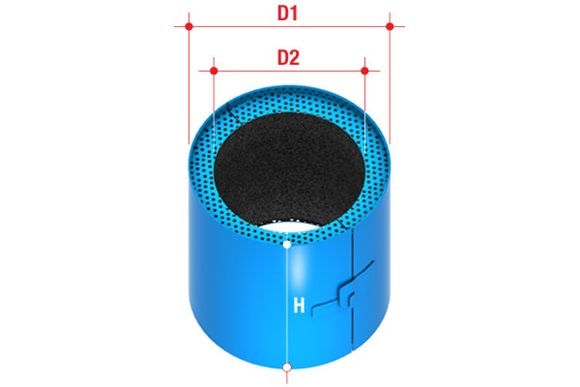

DIMENSION

Code no.     FCW 40     FCW 50     FCW 65     FCW 100     FCW 150
Pipe nominal diameter   mm     40 50 65 100 150
Body H mm     120 120 120 120 120
D1 mm     80* 90* 107* 153* 203*
D2 mm    47 60 75 116 164

* Additional allowance of 3mm for clip

PROMASEAL® Wall Collar are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.

SKU 78273
Model # Promat PromaSeal FCW 65
Brand Promat
Shipping Weight 0.5000kg
Shipping Width 0.130m
Shipping Height 0.050m
Shipping Length 0.130m
Shipping Cubic 0.000845000m3
Type PromaSeal FCW 65 Fire Wall Collar
