Promat PromaSeal FCW 50 Fire Wall Collar
PromaSeal FCW 50 Fire Collar
Notify me when back in stock
PROMASEAL® Wall Collar is designed for insertion into wall elements made of matrix engineered mineral, Cement Bound Matrix, PromaX® mineral, calcium silicate, fibre silicate, plasterboard, concrete or masonry, and has been tested on uPVC and HDPE pipes.
Similar to the PROMASEAL® Retrofit Collar, this is a split type collar enabling retro fitting where necessary.
(78272)

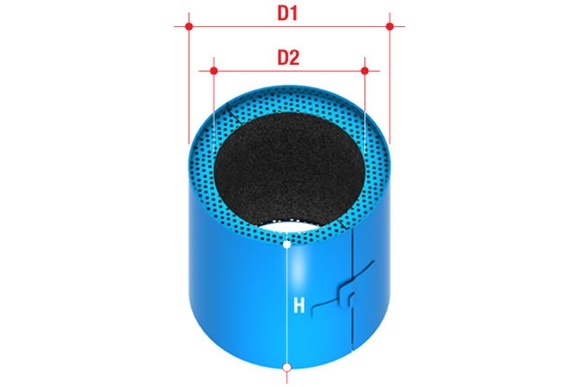

DIMENSION
| Code no. | FCW 40 | FCW 50 | FCW 65 | FCW 100 | FCW 150 | ||
|---|---|---|---|---|---|---|---|
| Pipe nominal diameter | mm | 40 | 50 | 65 | 100 | 150 | |
| Body | H | mm | 120 | 120 | 120 | 120 | 120 |
| D1 | mm | 80* | 90* | 107* | 153* | 203* | |
| D2 | mm | 47 | 60 | 75 | 116 | 164 |
* Additional allowance of 3mm for clip
PROMASEAL® Wall Collar are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.
| SKU | 78272 |
| Model # | Promat PromaSeal FCW 50 |
| Brand | Promat |
| Shipping Weight | 0.4000kg |
| Shipping Width | 0.110m |
| Shipping Height | 0.050m |
| Shipping Length | 0.110m |
| Shipping Cubic | 0.000605000m3 |
| Type | PromaSeal FCW 50 Fire Wall Collar |
