Promat Promastop UniCollar - 2.25m cut-to-length Strip Fire Collar

Promat UniCollar - One Size Fits all Fire Collar

$140.00
In Stock


Calculate Shipping

Fire Collar - PROMASTOP® UniCollar® is an intumescent device designed to maintain the integrity of the fire resistant elements through which various plastic pipes pass. It is suitable for installation in various floors and walls.

Fire Collar - Fire Resistant Collar for Plastic Pipes Penetration Seals

PROMASTOP® UniCollar® is an intumescent device designed to maintain the integrity of the fire resistant elements through which various plastic pipes pass. It is suitable for installation in various floors and walls similar to that in which it has been tested. In the event of a fire, the intumescent material in the PROMASTOP® UniCollar® rapidly expands, closing off the plastic pipe or combustible insulation and forming an insulating barrier.

PROMASTOP® UniCollar® is currently tested with many new and existing types of plastic using uPVC as a benchmark.

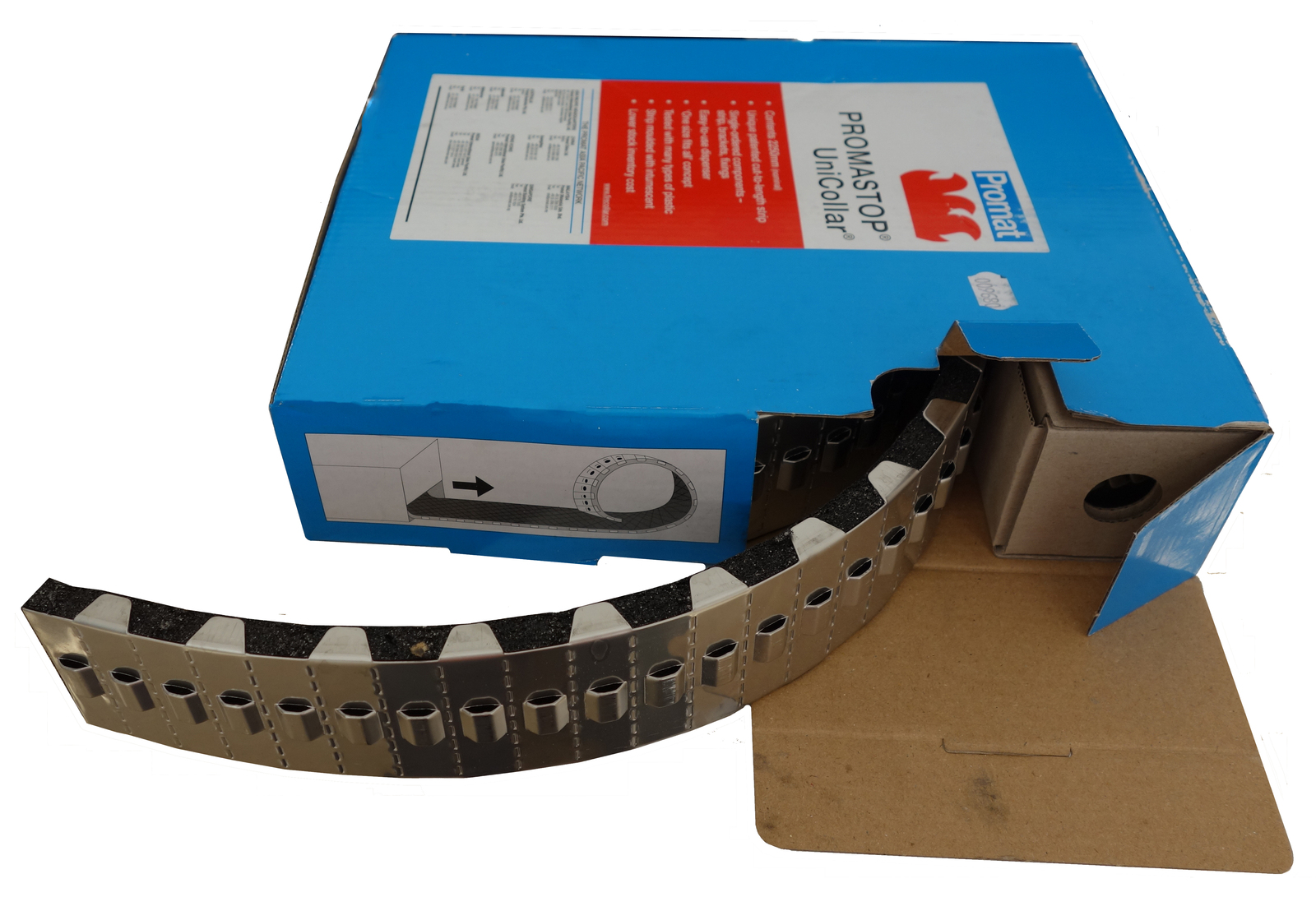

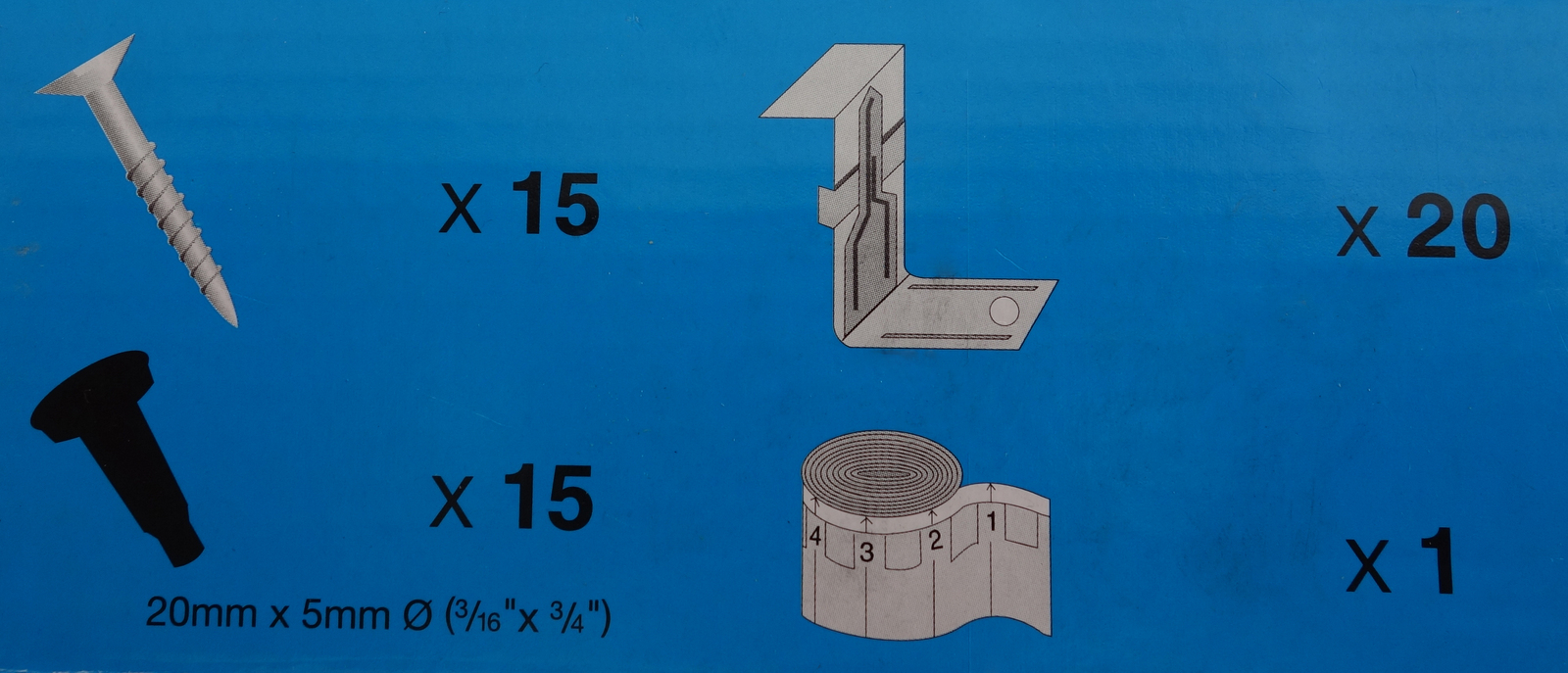

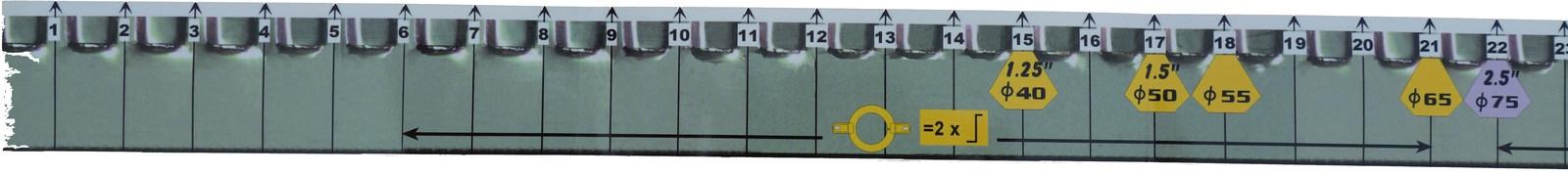

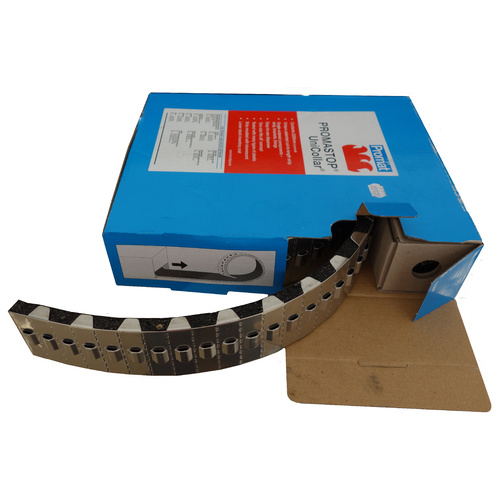

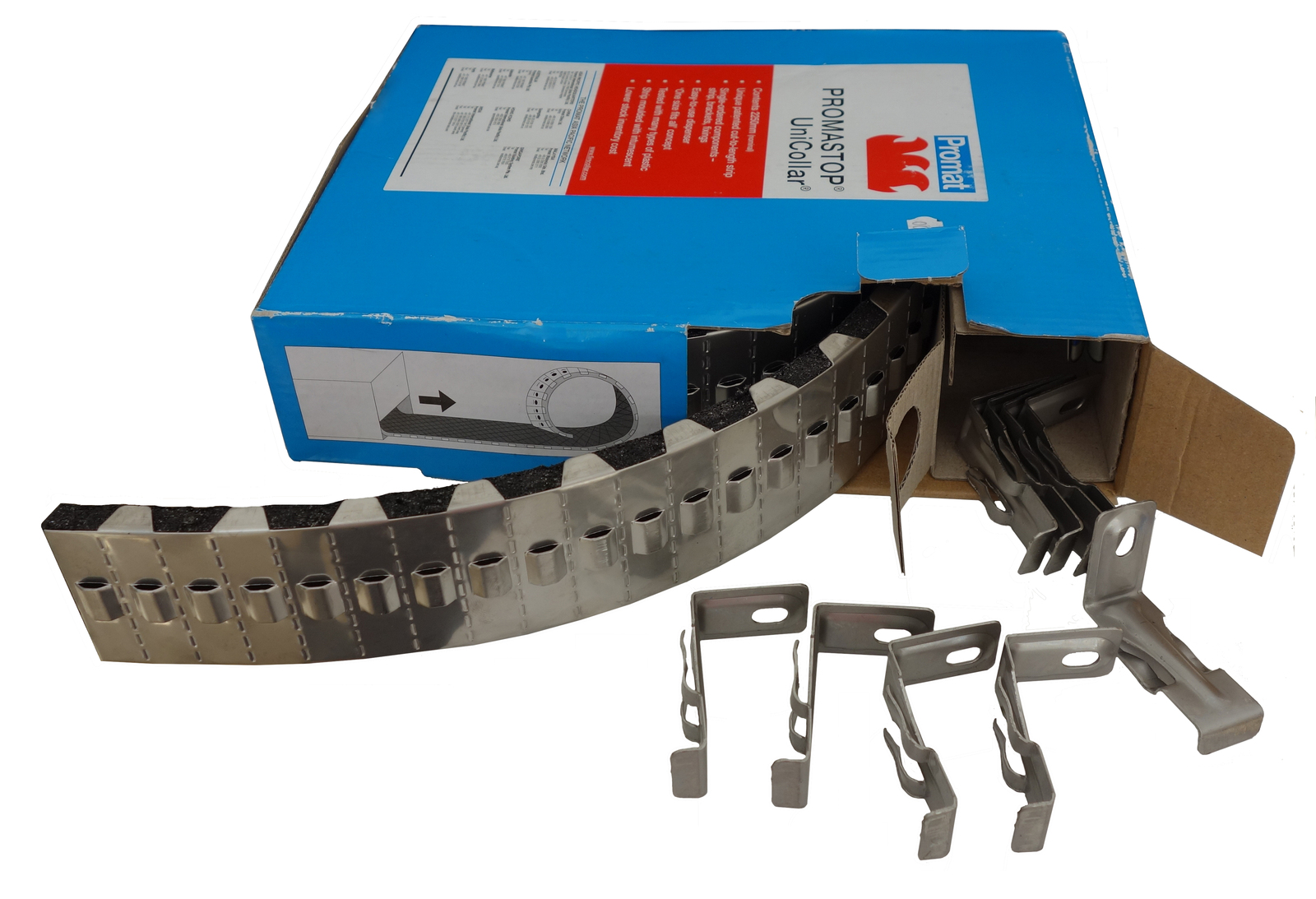

PROMASTOP® Unicollar® is packed in individual boxes each containing 2250mm length of collar (or 150 segments) and fixing accessories are included. The collar is designed so that it can be cut and snapped in modules of 15mm. For a guide to the approximate number of collar sizes per strip, please refer to the usage guide table.

Applications - Penetration Seals

FOR TECHNICAL INFORMATION PLEASE VISIT http://www.promat-ap.com/en/products

(78342)

ADVANTAGES

  • Size of opening
  • Flexibility of seal(s)
  • Ambient conditions
  • Frequecy of change to services
  • Penetration services
  • Smoke or gas lightness
  • Design life
  • Parent construction (type of substrate)



USAGE GUIDE

Inside diameter (I/D) mm 43 50 55 63 69 75 83 90 110 114 125 140 160 200
inches 1.25 1.5 - 2 - 2.5 - 3 - 4 - 5 6 -
Segments per collar
(UL listing if featured)
15 17 18 20
(19)
21 22 24 25 29 30 33 36 40
(42)
49
Approximate number of collars per box 10 8.5 8 7.5 7 6.5 6 6 5 5 4.5 4 3.5
(3.75)
3
Number of brackets per collar for floor application 2 2 2 2 2 3 3 3 3 3 4 5 5 5
Number of brackets per collar for wall application 2* 2* 2* 2* 2* 3 3 3 3 3 3 5 5 5

*Three brackets are recommended for framed walls if framing is not available to be fixed on.

PROMASTOP® UniCollar® are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.

SKU 78342
Model # Promastop UniCollar
Brand Promat
Shipping Weight 2.1200kg
Shipping Width 0.080m
Shipping Height 0.200m
Shipping Length 0.260m
Shipping Cubic 0.004160000m3
Assembled Length 0.260m
Assembled Height 0.200m
Assembled Width 0.080m
Type Promat Promastop UniCollar
