Promat PromaSeal FCS50 Retrofit Fire Collar 50mm Socket

FCS50 Fire Collar

$52.00
In Stock


Calculate Shipping

Circular based PROMASEAL® Retrofit Collar (FCS type) is designed to be fitted around installed pipes that pass through floor slabs and have been tested with uPVC, HDPE and ABS pipes up to 150mm diameter.

PROMASEAL® Retrofit Collar (circular base) - Fire Resistant Collar for Plastic Pipes Penetration Seals

Circular based PROMASEAL® Retrofit Collar (FCS type) is designed to be fitted around installed pipes that pass through floor slabs and have been tested with uPVC, HDPE and ABS pipes up to 150mm diameter. The larger opening within the collars will accommodate pipes (and uPVC pipe fittings) that have differing outside diameters.

PROMASEAL® Retrofit Collar should be unclipped, placed around the pipe, reclipped and pushed tight to the substrate.

Both square and circular based PROMASEAL® Retrofit Collars can be split in order to be retrofitted or relocated when necessary.


THIS ONE IS 50mm in size

FOR TECHNICAL INFORMATION PLEASE VISIT http://www.promat-ap.com/en/products

(78267)

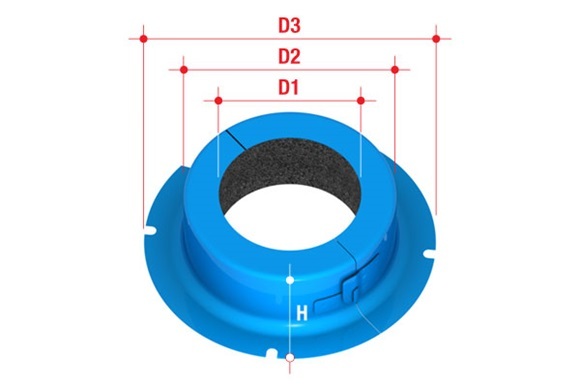

DIMENSION

Code no.   FCS 40     FCS 50     FCS 65     FCS 100
uPVC pipe nominal diameter mm     40 50 65 100
HDPE pipe nominal diameter mm     50 56 75 100
ABS pipe nominal diameter mm     40 50 - 100
Body H mm     43 43 43 53
D1 mm     56 70 84 127
D2 mm     84 98 113 167
Flange D3 mm     131 145 161 214



Circular based PROMASEAL® Retrofit Collars are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.

SKU 78267
Brand Promat
Shipping Weight 0.4000kg
Shipping Width 0.110m
Shipping Height 0.050m
Shipping Length 0.110m
Shipping Cubic 0.000605000m3
Type FCS50 Retrofit Fire Collar 50mm Socket
