Promat PromaSeal FCS100 Retrofit Fire Collar 100mm Socket
FCS100 Fire Collar
Notify me when back in stock

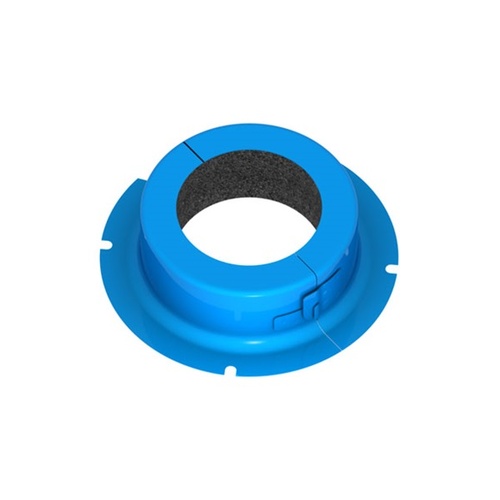

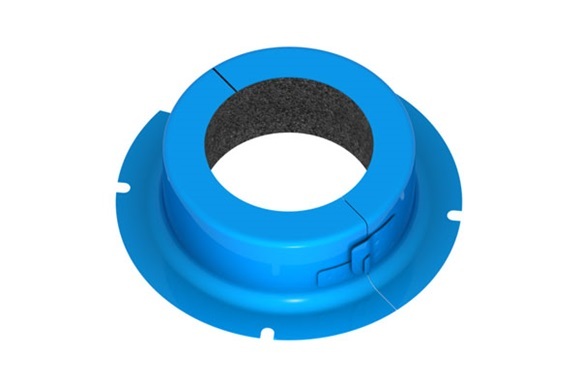

Circular based PROMASEAL® Retrofit Collar (FCS type) is designed to be fitted around installed pipes that pass through floor slabs and have been tested with uPVC, HDPE and ABS pipes up to 150mm diameter. The larger opening within the collars will accommodate pipes (and uPVC pipe fittings) that have differing outside diameters.
PROMASEAL® Retrofit Collar should be unclipped, placed around the pipe, reclipped and pushed tight to the substrate.
Both square and circular based PROMASEAL® Retrofit Collars can be split in order to be retrofitted or relocated when necessary.

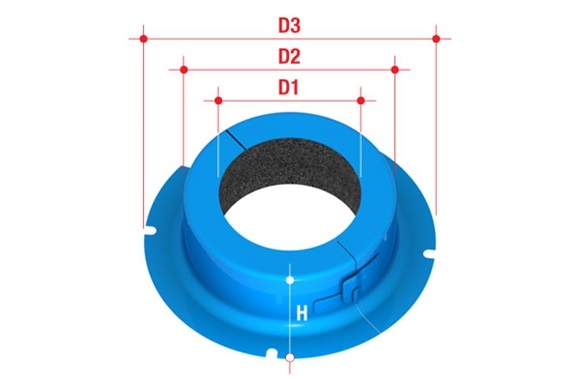

|Code no.||FCS 40||FCS 50||FCS 65||FCS 100|
|uPVC pipe nominal diameter||mm||40||50||65||100|
|HDPE pipe nominal diameter||mm||50||56||75||100|
|ABS pipe nominal diameter||mm||40||50||-||100|
Circular based PROMASEAL® Retrofit Collars are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.
|Type||FCS100 Retrofit Fire Collar 100mm Socket|
