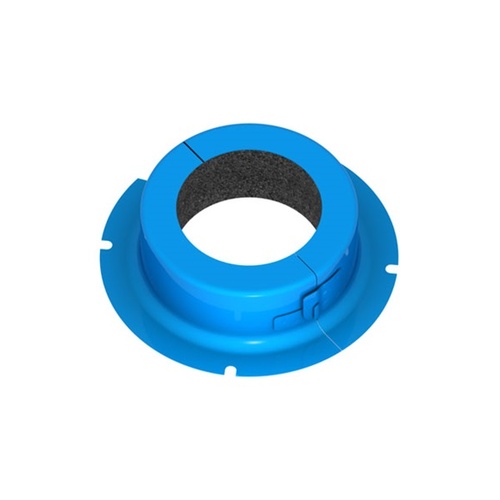

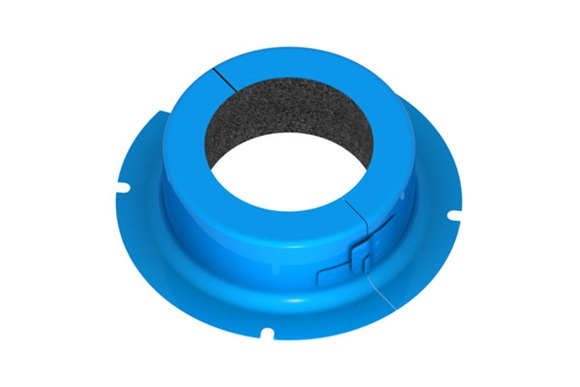

Promat PromaSeal FCS65 Retrofit Fire Collar 65mm Socket

Calculate Shipping

Circular based PROMASEAL® Retrofit Collar (FCS type) is designed to be fitted around installed pipes that pass through floor slabs and have been tested with uPVC, HDPE and ABS pipes up to 150mm diameter.

PROMASEAL® Retrofit Collar (circular base) - Fire Resistant Collar for Plastic Pipes Penetration Seals

Circular based PROMASEAL^® Retrofit Collar (FCS type) is designed to be fitted around installed pipes that pass through floor slabs and have been tested with uPVC, HDPE and ABS pipes up to 150mm diameter. The larger opening within the collars will accommodate pipes (and uPVC pipe fittings) that have differing outside diameters.

PROMASEAL^® Retrofit Collar should be unclipped, placed around the pipe, reclipped and pushed tight to the substrate.

Both square and circular based PROMASEAL^® Retrofit Collars can be split in order to be retrofitted or relocated when necessary.

THIS ONE IS 65mm in size

FOR TECHNICAL INFORMATION PLEASE VISIT http://www.promat-ap.com/en/products

(78268)

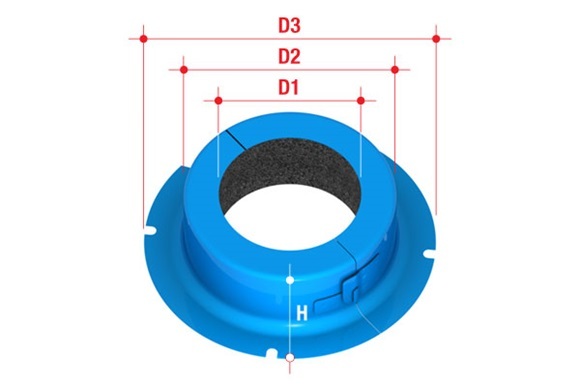

DIMENSION

Code no.			FCS 40	FCS 50	FCS 65	FCS 100
uPVC pipe nominal diameter		mm	40	50	65	100
HDPE pipe nominal diameter		mm	50	56	75	100
ABS pipe nominal diameter		mm	40	50	-	100
Body	H	mm	43	43	43	53
	D1	mm	56	70	84	127
	D2	mm	84	98	113	167
Flange	D3	mm	131	145	161	214

Circular based PROMASEAL^® Retrofit Collars are manufactured under a quality management system certified in accordance with ISO 9001: 2008. The production unit has passed the site audit of ISO 14001 and all manufacturing processes are in accordance with the environmental standards of ISO 14001: 2004 and the safety standards of AS 4801: 2001.

SKU	78268
Brand	Promat
Shipping Weight	0.5000kg
Shipping Width	0.130m
Shipping Height	0.050m
Shipping Length	0.130m
Shipping Cubic	0.000845000m3
Type	FCS65 Retrofit Fire Collar 65mm Socket
